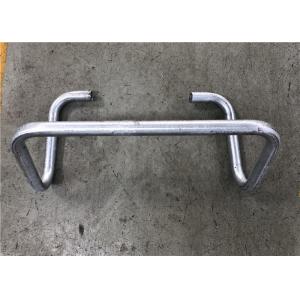

Long Throat Bending Machine For Chair 3D Chair Frame Pipe Bending
Machine Cnc Mandrel Pipe Bending Machine
Product Description
Long Throat Bending Machine For Chair 3D Chair Frame Pipe Bending
Machine Cnc Mandrel Pipe Bending Machine
- It is fully automatic pipe bending machine, with PLC control
system, two servo for rotary, feeding.
- Touch screen panel display English, have different bending degree
prefabricate, dialogue operation, can choose manual, semi-automatic
and full automatic operation manual, portable pedal switch with
start and emergency stop function.Multi axes working
simultaneously.
- Bending pipe — Automatic. Rotating pipe — Automatic. Feeding pipe
— Automatic.
- One key back up of programs for USB or disk storage or through
INTERNET. Management and storage of bend data and tools is done in
standard text files on the hard disk of the control PLC. In case of
requirement it is also possible to integrate the PLC into bending
machine. Therefore an Ethernet adapter is included. The number of
tools and products is practically unlimited. Product and tool files
can easily be edited (also on a separate PLC) and printed out.
- Security code for protection data setting and selected operation
features of pipe bending machine.
- To access to history bending setting data to facilitate study of
malfunction with one set of tooling.
- All parts of hydraulic system, control system, driver system and
display system are imported from famous brand, with high accuracy,
high efficient, suitable for mass production.
- CNC fully auto, have cubical space bending equipment, loading
whole bending process is automatic.
- The machine is convenient operation, stable performance and high
safety factor. Our JOBEST MACHINERY Pipe bending machine is ideal
choice for pipe processing.
- CE, ISO9001, SGS Certification for our pipe bending machine
Product Specifications
| Model | M63CNC -2A-1S -3A-1S -4A-3S -5A-2S -5A-3S |
| Bending Capacity | Ø63X3mm |
| Range of Bending Radius | 25-270mm |
| Max. Bending Degree | 190° |
| Mandrel Length | 3000mm |
| Touch Screen | Taiwan Weinview |
| Bending Accuracy | ±0.1° |
| Rotating Accuracy | ±0.1° |
| Feeding Accuracy | ±0.1mm |
Application Industry
| Furniture | Boiler | Exhaust | Shipyard /oil rig |
| Head rest | Heavy vehicle cabin | Green house | Health care |
| Aerospace/aviation | Serpentine bending | Fitness | Brake line |
Option (Multi-function in one machine) |
| Left and right direction bending | Pushing / Rolling | Robot hand | Auto punching |
| Auto cutting | Auto welding seam detection | Auto loading | Auto unloading |
| Infrared safety fence | Production line | Booster | Bend Nylon tube |
How does a pipe bender work?
When bending pipe using a pipe bender, the user must pull down the
handles on the pipe bender. This action forces the pipe to bend
around the former/shoe, following the shape of the roller,
producing a bend.
Can you bend tube with a pipe bender?
It is not recommended to bend a tube with a pipe bender because a
tube is measured by the outside diameter, whereas a pipe is
measured by the inside. It is important to use tube bending
equipment to bend tubes, and pipe bending equipment to bend pipes,
in order to reach an accurate bend.
What is a hydraulic pipe bender?
A hydraulic pipe bender can be used to bend metal pipes, to acute
angles accurately. Hydraulic pressure is used to bend thick-walled
pipe and conduit, without the piping wrinkling. High-pressure oil
is used to provide a powerful but controlled thrust, which bends
the pipe accurately.
What is a pipe bender used for?
The main purpose of pipe bending is to manipulate piping to bend in
different shapes and directions. A number of industries and trades
require pipe bending services. Some of these include the plumping
industry, electrical conduit piping, architects, marine and
mechanics.
